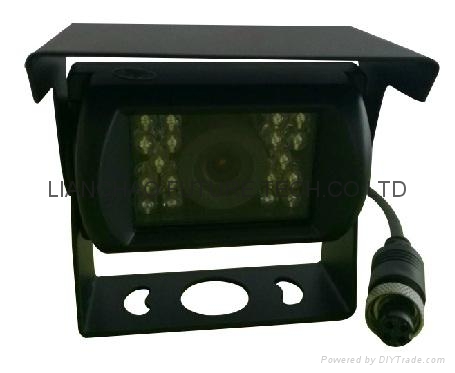

IP67 IR Waterproof Car Rear View Camera

  • IP67 IR Waterproof Car Rear View Camera
  • IP67 IR Waterproof Car Rear View Camera
Model No.︰LCF-VDIR
Brand Name︰LCF
Country of Origin︰China
Unit Price︰-
Minimum Order︰10 pc
Share on:

 Total 20 Related Items
Prev1516171819Next

Product Description

Model No.:

LCF-VDIR

Sensor:

 1/3”964*480 Pixels CMOS

Solution:

COMS 1099+

Horizontal Resolution

 Color 700 TVL

Signal System

PAL / NTSC

Resolution

PAL:976*582, NTSC:976*494

 Minimum Illumination

 (0.01Lux when IR on)

 Synchronization System

 Inner Synchronization

Scanning System

 2:1 Interlaced Scanning

S/N Ratio

 >50dB

 Lens

2.8mmCCD Lens

 Lens Specification

Diagonal: 120 Degree; Horizontal: 70.9 Degree

 Electronic Shutter

Auto 1/501/60-1/100,000sec

OSD Menu Language

Simplified Chinese/ Traditional Chinese / ENG / Portuguese / ESP

CDS IN /

Color to Black IR Synchronization Trigger Signal: 1.6-8V Input

 White Balance

Auto White Balance

Color to Black

 External Auto Control

Gamma Correction

 0.45

 IR Distance

 1m – 5m (18Pcs xΦ5)

Night Vision Effect

Black & White

 Video Output

 1.0Vp-p Composite Video Output, 75Ω, 4Pin Shielded cable with Aviation Connector

Connector

Screw Thread 4 Pin Aviation Female connector(PIN 1- VCC PIN 2-GND; PIN 3-Audio; PIN 4-Video)

Power Supply

DC12V±10%

 Consumption(Max)

250mA/DC12V±1V

 Working Environment

 Humidity: 20%~95% Temperature. -30~85

Product Image
