LCF-23IRF RS232 JPEG Serial Camera

2.0mp JPEG Serial Camera
Model No.︰LCF-23IRF
Brand Name︰LCF
Country of Origin︰-
Unit Price︰US $ 28 / pc
Minimum Order︰10 pc
Share on:

 Total 13 Related Items
Prev12345Next

Product Description

Model No.: LCF-23IRF

Application

General purpose embedded imaging and control.

Security system

Access Control system

Robot vision, object detection and recognition.

Industrial control system.

Automotive system.

Medical systems etc.

Features

1. Working by day and light(IR LED)

2. Low cost and low powered camera for embedded imaging applications.

3. On-board EEPROM provides a command-based interface to external host via RS232,RS485 and TTL serial link.

4. UART: up to 115200bps for transferring JPEG still pictures

5. Support fast continuous snapshotting

6. Built-in down sampling, clamping and windowing circuits for VGA, QVGA, 160x120 image resolutions.

7. Auto-Infrared, Auto-White Balance, Auto-Gain Control.

No.

Item

Description

1

Image sensor

CMOS

2

Pixels

0.3 mega pixels

3

Image Resolution

640*480 320X240 160X120

4

Image Compression

JPEG

5

Focal Length

2.5mm  3.6mm 6mm optional

6

Angle of View

120°  90° 60° optional

7

Minimum lumen

1 Lux

8

Night Vision lumen

5 Lux

9

Night Vision Image

Black-White Image

10

Night Vision Distance

3-10M

11

Serial Interface

RS232 TTL RS485

13

Baud Rate

9600-115200bps

14(1)

Connector

Customize for customer(any connector is available)

(2)

 PIN Description

PIN 1: DC 5V

PIN 2: TXD

PIN 3: RXD

PIN 4: GND



15

Length of Cable

Customize for customer(2m is default one)

16

White Balance

Automatic

17

Exposure

Automatic

18

Auto Gain Control

Automatic

19

Weight

0.4KG

20

Working Current

IR Off: 50-80mA

IR On: 250-320mA

21

Power Supply

5V

22

Working Temperature

-15°C~70°C

23

Datasheet/Protocol

LCF Protocol

24

PC Test Software

Support

Payment Terms︰T/T in advance,Paypal,Western Union
Lead Time︰2-3 working days for samples

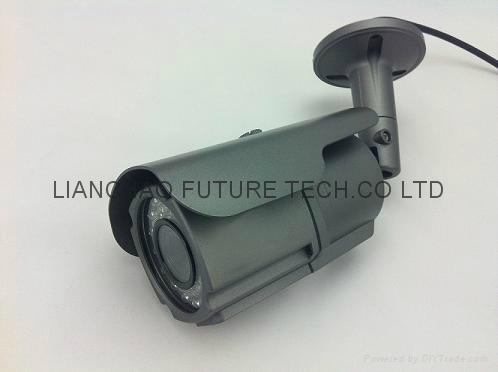

Product Image

2.0mp JPEG Serial Camera
2.0mp JPEG Serial Camera
