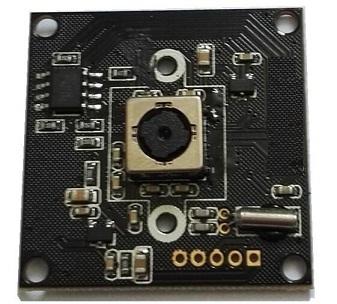

5.0mp HD USB Camera with auto foucs

Model No.︰LCF-USB5M-32
Brand Name︰LCF
Country of Origin︰China
Unit Price︰-
Minimum Order︰5 pc
Share on:

 Total 25 Related Items
Prev2122232425Next

Product Description

1

Part Number

LCF-USB5M-32

2

Sensor

OV5640 (1/4” )

3

Maximum Effective Pixel

2592 (H) *1944 (V)

4

Sensitivity

600mV/Lux-sec

5

Pixel Size

1.4µm x1.4µm

6

Image area

3673.6µmx2738.4µm

7

Output Image Format

MJPEG  / YUV2YUYV

8

Focusing

Auto

9

Object Distance

3CM-100M

10

Central Clarity

600LW/PH (Center)

11

SNR

34dB

12

Sensitivity

0.65V/lux-sec@550nm

13

Resolution and Frame Speed Supporte(YUY2)

2592*1944: 2f   1920*1080: 5f 1600*1200 :5f  1280*720: 5f    1024*768: 15f  640*480: 30f  352*288 :30f

14

Resolution and Frame Speed Support(MJPEG default one)

2592*1944: 15f   1920*1080: 30f 1600*1200: 15f  1280*720: 30f    1024*768: 30f  640*480: 30f  352*288: 30f

15

Minimum illumination

0.5lux

16

Shutter type

Electronic rolling shutter / Frame exposure

17

Interface type

USB2.0 High Speed

18

AEC

YES

19

AEB

YES

20

AGC

YES

21

Lens Specification

Size:  1/4,  Iris:  F2.8,  Focus: 3.2mm,  FOV: 65Degree

Relative Illumination (Sensor): 70%



22

Power supply and interface

USB BUS POWER  4P-2.0mm connector

23

Power

DC5V

24

Current

150mW VGA; 200mW QSXGA;

25

Size

32MMX32MM

26

Storage temperature

-30°C to 70°C

27

Working temperature

-10°C to 60°C

28

USB Cable

1M(2M/3M/5M optional)

29

Working humidity

15%-85%

30

System support

Win XP/Vista/Win7/Win8 / Linux with UVCabove linux-2.6.26

MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC



Payment Terms︰T/T in advance,Paypal,Western Union
Lead Time︰About 3 working days for samples
