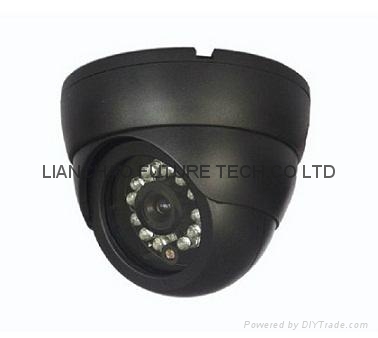

LCF-23IRC RS232 CCTV Camera

  • LCF-23IRC RS232 CCTV Camera
  • LCF-23IRC RS232 CCTV Camera
  • LCF-23IRC RS232 CCTV Camera
Model No.︰LCF-23IRC
Brand Name︰-
Country of Origin︰China
Unit Price︰-
Minimum Order︰-
Share on:

 Total 8 Related Items
Prev12345Next

Product Description

Model No.:LCF-23IRC

Application

General purpose embedded imaging and control.

Security system

Access Control system

Robot vision, object detection and recognition.

Industrial control system.

Automotive system.

Medical systems etc.

Features

1. Working by day and light(IR LED)

2. Low cost and low powered camera for embedded imaging applications.

3. On-board EEPROM provides a command-based interface to external host via RS232,RS485 and TTL serial link.

4. UART: up to 115200bps for transferring JPEG still pictures

5. Support fast continuous snapshotting

6. Built-in down sampling, clamping and windowing circuits for VGA, QVGA, 160x120 image resolutions.

7. Auto-Infrared, Auto-White Balance, Auto-Gain Control.

No.

Item

Description

1

Image sensor

CMOS

2

Pixels

0.3 mega pixels

3

Image Resolution

640*480 320X240 160X120

4

Image Compression

JPEG

5

Focal Length

2.5mm  3.6mm 6mm optional

6

Angle of View

120°  90° 60° optional

7

Minimum lumen

1 Lux

8

Night Vision lumen

5 Lux

9

Night Vision Image

Black-White Image

10

Night Vision Distance

3-10M

11

Serial Interface

RS232 TTL RS485

12

Baud Rate

9600-115200bps

13(1)

Connector

Customize for customer(any connector is available)

(2)

 PIN Description

PIN 1: DC 5V

PIN 2: TXD

PIN 3: RXD

PIN 4: GND



14

Length of Cable

Customize for customer(2m is default one)

15

White Balance

Automatic

16

Exposure

Automatic

17

Auto Gain Control

Automatic

18

Weight

0.4KG

19

Working Current

IR Off: 80-120mA

IR On: 250-320mA

20

Power Supply

5V

21

Working Temperature

-15°C~70°C

22

Datasheet/Protocol

LCF Protocol

23

PC Test Software

Support

24

Material of Case

Plastic case

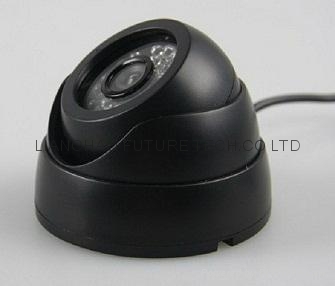

Product Image
