1.3mp JPEG Camera Module

Model No.︰LCF-23M9
Brand Name︰LCF
Country of Origin︰China
Minimum Order︰10 pc
Share on:

 Total 26 Related Items
12345Next

Product Description

Model No.:LCF-23M9


Application

General purpose embedded imaging and control.

Security system

Access Control system

Robot vision, object detection and recognition.

Industrial control system.

Automotive system.

Medical systems etc.

Features

1. Working by day and light.(IR LED)

2. Low cost and low powered camera for embedded imaging applications.

3. On-board EEPROM provides a command-based interface to external host via RS232,RS485 and TTL serial link.

4. UART: up to 115200bps for transferring JPEG still pictures

5. Support fast continuous snapshotting

6. Support from QVGA,VGA to 1280X720,1280X960 different resolutions

7. Auto-Infrared, Auto-White Balance, Auto-Gain Control.



No.

Item

Description

1

Image sensor

CMOS

2

Pixels

960P

3

Image Resolution

from 320X240 to 1280X720,1280X960

4

Image Compression

JPEG

5

Focal Length

2.8mm 3.6mm

6

Angle of View

120° 90°

7

Minimum lumen

1 Lux

8

Night Vision lumen

5 Lux

9

Night Vision Image

Black-White Image

10

Serial Interface

RS232 TTL RS485

11

Baud Rate

9600-115200bps

12(1)

Connector

Customize for customer(any connector is available)

(2)

 PIN Description

DC5V

 TXD

RXD

GND



13

Length of Cable

Customize for customer

14

White Balance

Automatic

15

Exposure

Automatic

16

Auto Gain Control

Automatic

17

Weight

0.02 KG

18

Working Current

IR Off: About 130mA

19

Power Supply

5V

20

Working Temperature

-15°C~70°C

21

Datasheet/Protocol

LCF Protocol

22

PC Test Software

Support



Payment Terms︰T/T in advance/Paypal
Lead Time︰3 working days

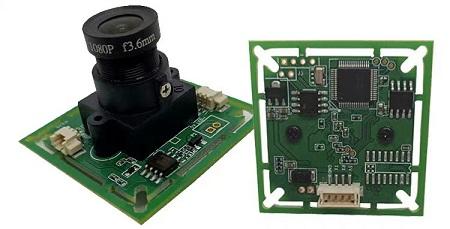

Product Image
