LCF-23MB 0706 Protocol) JPEG Serial Camera Module

1
  • 1
  • LCF-23MB 0706 Protocol) JPEG Serial Camera Module
  • LCF-23MB 0706 Protocol) JPEG Serial Camera Module
Model No.︰LCF-23MB/TB
Brand Name︰LCF
Country of Origin︰China
Unit Price︰US $ 16 / pc
Minimum Order︰100 pc
Share on:

 Total 26 Related Items
Prev1415161718Next

Product Description

Model No.:LCF-23MB(32-38mm)

Application

General purpose embedded imaging and control.

Security system

Access Control system

Robot vision, object detection and recognition.

Industrial control system.

Automotive system.

Medical systems etc.

Features

1. Working by day and light(IR LED)

2. Low cost and low powered camera for embedded imaging applications.

3. On-board EEPROM provides a command-based interface to external host via RS232,RS485 and TTL serial link.

4. UART: up to 115200bps for transferring JPEG still pictures

5. Support fast continuous snapshotting

6. Built-in down sampling, clamping and windowing circuits for VGA, QVGA, 160x120 image resolutions.

7. Auto-White Balance, Auto-Gain Control.

No.

Item

Description

1

Image sensor

CMOS

2

Pixels

0.3 mega pixels

3

Image Resolution

640*480 320X240 160X120

4

Image Compression

JPEG

5

Focal Length

2.5mm  3.6mm

6

Angle of View

120°  90°

7

Minimum lumen

1 Lux

8

Night Vision lumen

5 Lux

9

Night Vision Image

Black-White Image

10

Serial Interface

RS232 TTL RS485

11

Baud Rate

9600-115200bps

12(1)

Connector

Customize for customer(any connector is available)

(2)

 PIN Description

PIN 1: DC 5V

PIN 2: TXD

PIN 3: RXD

PIN 4: GND



13

Length of Cable

Customize for customer(2m is default one)

14

White Balance

Automatic

15

Exposure

Automatic

16

Auto Gain Control

Automatic

17

Weight

0.012KG

18

Working Current

50-80mA

19

Power Supply

5V

20

Working Temperature

-15°C~70°C

21

Datasheet/Protocol

LCF Protocol

22

PC Test Software

Support

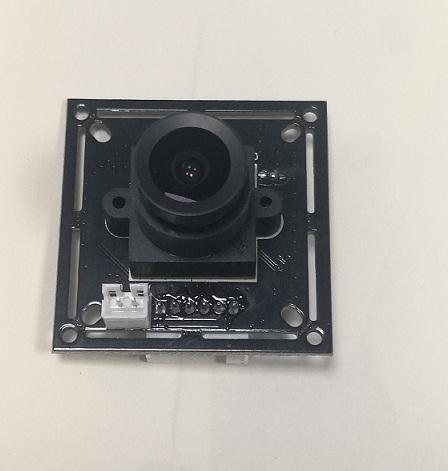

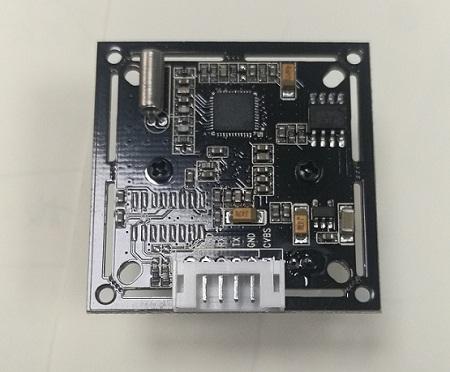

Product Image

1
1



Related Products
