NEW 2.0MP JPEG Camera Module

  • NEW 2.0MP JPEG Camera Module
  • NEW 2.0MP JPEG Camera Module
Model No.︰LCF-23TP(NEW)
Brand Name︰LCF
Country of Origin︰China
Minimum Order︰10 pc
Share on:

 Total 26 Related Items
Prev910111213Next

Product Description

Model No.:LCF-23TP


Application

General purpose embedded imaging and control.

Security system

Access Control system

Robot vision, object detection and recognition.

Industrial control system.

Automotive system.

Medical systems etc.

Features

1. Working by day and light.(IR LED)

2. Low cost and low powered camera for embedded imaging applications.

3. On-board EEPROM provides a command-based interface to external host via RS232,RS485 and TTL serial link.

4. UART: up to 115200bps(1152000 at most) for transferring JPEG still pictures

5. Support fast continuous snapshotting

6. Support from 160X120,QVGA,VGA to 1600X1200 different resolutions

7. Auto-Infrared, Auto-White Balance, Auto-Gain Control.

8.Support IR FILTER SWITCH(AUTO) IF NEEDED



No.

Item

Description

1

Image sensor

CMOS

2

Pixels

2.0 mega pixels

3

Image Resolution

from 160X120 to 1600X1200

4

Image Compression

JPEG

5

Focal Length

2.5mm3.6mm 6.0mm

6

Angle of View

120° 90° 60°

7

Minimum lumen

1 Lux

8

Night Vision lumen

5 Lux

9

Night Vision Image

Black-White Image

10

Serial Interface

RS232 TTL RS485

11

Baud Rate

9600-115200bps ,1152000 at most

12(1)

Connector

Customize for customer(any connector is available)

(2)

 PIN Description

PIN 1: DC 3.3V/5V(IR LED)

PIN 2: TXD

PIN 3: RXD

PIN 4: GND



13

Length of Cable

Customize for customer

14

White Balance

Automatic

15

Exposure

Automatic

16

Auto Gain Control

Automatic

17

Weight

0.02 KG

18

Working Current

IR Off: About 130mA

19

Power Supply

3.3V/5V

20

Working Temperature

-15°C~70°C

21

Datasheet/Protocol

LCF Protocol

22

PC Test Software

Support

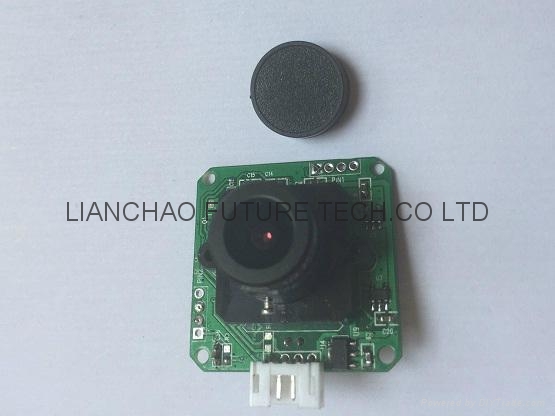

Product Image
