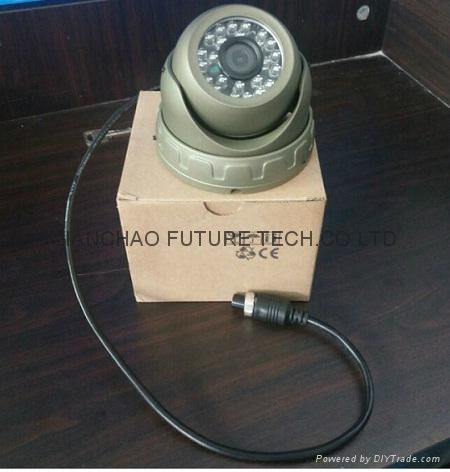

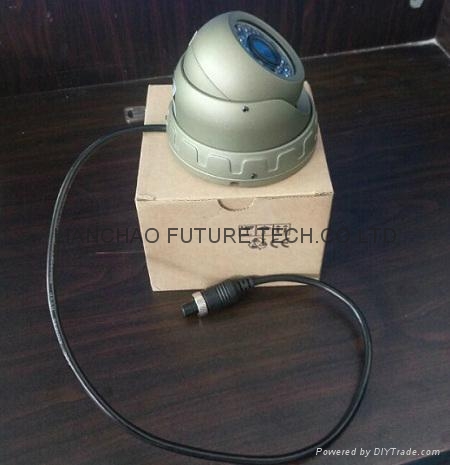

Model No.:
|
LCF-VDIRCF2
|
|
Sensor:
|
1/3”964*480 Pixels CMOS
|
|
Solution:
|
COMS 1099+
|
|
Horizontal Resolution
|
Color 700 TVL
|
|
Signal System
|
PAL / NTSC
|
|
Resolution
|
PAL:976*582, NTSC:976*494
|
|
Minimum Illumination
|
(0.01Lux when IR on)
|
|
Synchronization System
|
Inner Synchronization
|
|
Scanning System
|
2:1 Interlaced Scanning
|
|
S/N Ratio
|
>50dB
|
|
Lens
|
2.8mmCCD Lens
|
|
Lens Specification
|
Diagonal: 120 Degree; Horizontal: 70.9 Degree
|
|
Electronic Shutter
|
Auto 1/50（1/60）-1/100,000sec
|
|
OSD Menu Language
|
Simplified Chinese/ Traditional Chinese / ENG / Portuguese / ESP
|
|
CDS IN /
|
Color to Black IR Synchronization Trigger Signal: 1.6-8V Input
|
|
White Balance
|
Auto White Balance
|
|
Color to Black
|
External Auto Control
|
|
Gamma Correction
|
0.45
|
|
IR Distance
|
1m – 5m (18Pcs xΦ5)
|
|
Night Vision Effect
|
Black & White
|
|
Video Output
|
1.0Vp-p Composite Video Output, 75Ω, 4Pin Shielded cable with Aviation Connector
|
|
Connector
|
Screw Thread 4 Pin Aviation Female connector(PIN 1- VCC PIN 2-GND; PIN 3-Audio; PIN 4-Video)
|
|
Power Supply
|
DC12V±10%
|
|
Consumption(Max)
|
250mA/DC12V±1V
|
|
Working Environment
|
Humidity: 20%~95% Temperature. -30℃~85℃
|
