Product Catalog



Dual Camera

  • Dual Camera
  • Dual Camera
  • Dual Camera

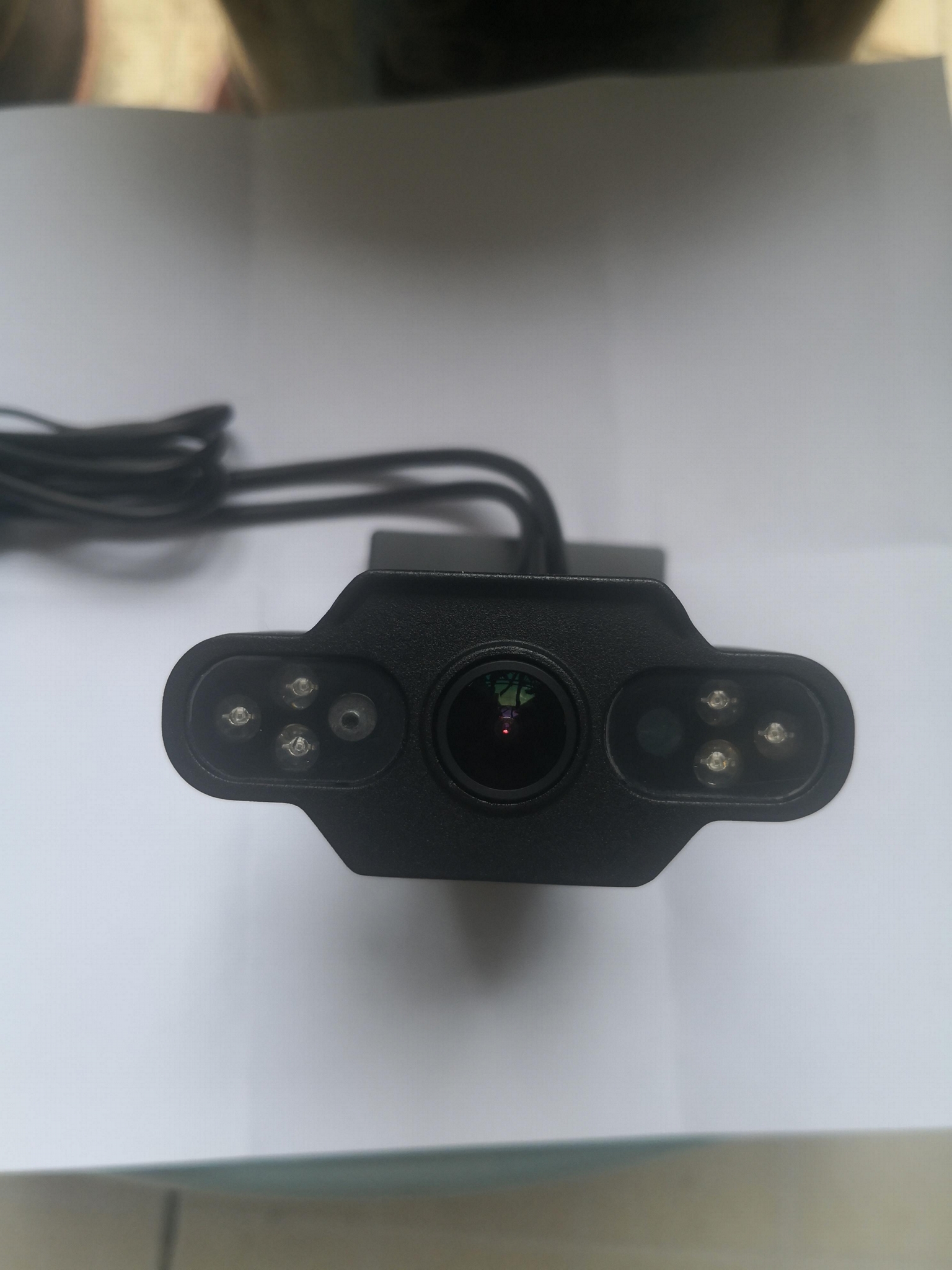

Model No.︰LCF-23D
Brand Name︰-
Country of Origin︰China
Unit Price︰-
Minimum Order︰-
Share on:

 Total 21 Related Items
Prev1516171819Next

Product Description

Model

LCF-23DA

Model

LCF-23DB

Image Sensor

1/3” CMOS AR0130

Image Sensor

1/3” CMOS AR0130

TV System

PAL/NTSC (optional)

TV System

PAL/NTSC (optional)

Picture Elements

1280 (H) x 960 (V)

Picture Elements

1280 (H) x 960 (V)

Sensitivity

0 Lux (IR LED On)

Sensitivity

0.1 Lux/F1.2

Scanning System

Progressive scan RGB CMOS

Scanning System

Progressive scan RGB CMOS

Synchronization

Internal

Synchronization

Internal

S/N Ratio

More than 44dB (AGC Off)

S/N Ratio

More than 44dB (AGC Off)

Auto Gain Control (AGC)

Auto

Auto Gain Control (AGC)

Auto

Electronic Shutter

Auto

Electronic Shutter

Auto

BLC

Auto

BLC

Auto

Infrared Spectrum

940nm

Infrared Spectrum

N/A

Infrared LED

6 LEDs

Infrared LED

N/A

Video Output

1 Vp-p, 75Ω,AHD

Video Output

1 Vp-p, 75Ω,AHD

Audio

Available

Audio

N/A

Mirror

Optional

Mirror

Optional

ICR

N/A

ICR

N/A

Noise Redution

3D

Noise Redution

3D

Dymamic range

83.5 dB

Dymamic range

83.5 dB

Lens

f2.5mm Megapixel

Lens

f2.5mm Megapixel

Pan Adjusting

0-50°

Pan Adjusting

N/A

Tilt Adjusting

0-50°

Tilt Adjusting

0-80°

Power Supply

9-18V DC

Power Supply

9-18V DC

Power Consumption

110mA

Power Consumption

70mA

Weatherproof/Water Proof

N/A

Weatherproof/Water Proof

N/A

Operating Temperature

-30°C to +70°C

Operating Temperature

-30°C to +70°C

Payment Terms︰Western Union,Paypal,T/T in advance
