Model
|
LCF-23VDIRW
|
|
Image Sensor
|
1/4” PV2109K
|
|
TV System
|
PAL
|
|
Picture Elements
|
1296 (H) x 736 (V)
|
|
Sensitivity
|
0 Lux (IR LED On)
|
|
S/N Ratio
|
More than 44dB (AGC Off)
|
|
Infrared Spectrum
|
940nm
|
|
Infrared LED
|
8 LEDs
|
|
Video Output
|
1 Vp-p, 75Ω,AHD
|
|
Audio
|
Optional
|
|
Mirror
|
Optional
|
|
ICR
|
N/A
|
|
Lens
|
f2.5mm Megapixel
|
|
Power Supply
|
12V DC
|
|
Power Consumption
|
130mA
|
|
Dimensions (L X W X H)
|
54 x 47 x 68mm
|
|
Net Weight
|
213g
|
|
Weatherproof
|
IP67
|
|
Operating Temperature
|
-30°C to +70°C
|
|
|
|
|

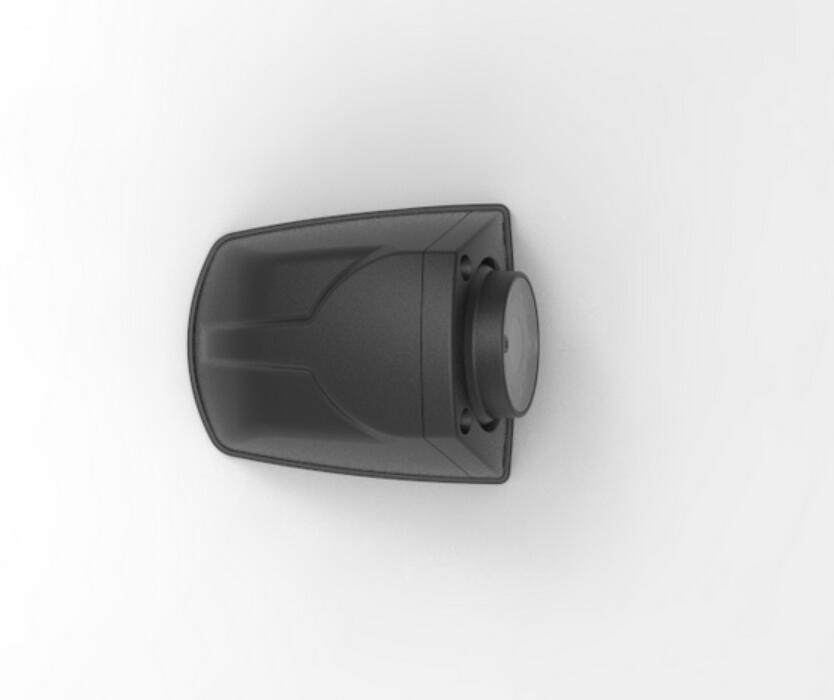

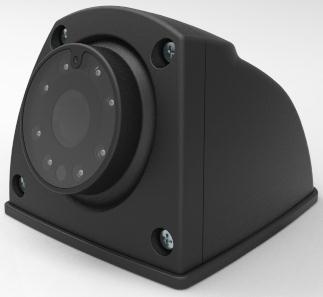

Product Image
|
