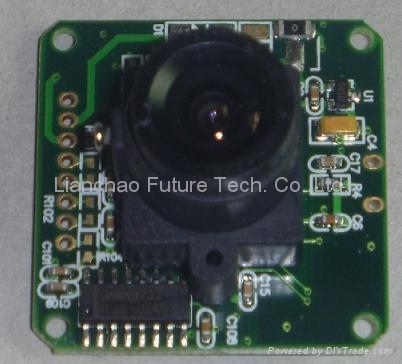

Model:LCF-23M(OV528)
Size:32mmx32mm
Application
General purpose embedded imaging and control.
Security system
Access Control system
Robot vision, object detection and recognition.
Industrial control system.
Automotive system.
Medical systems etc.
Features
1. Working by day and light(IR LED)
2. Low cost and low powered camera for embedded imaging applications.
3. On-board EEPROM provides a command-based interface to external host via RS232,RS485 and TTL serial link.
4. UART: up to 115200bps for transferring JPEG still pictures
5. Support fast continuous snapshotting
6. Built-in down sampling, clamping and windowing circuits for VGA, QVGA, 160x120 image resolutions.
7. Auto-White Balance, Auto-Gain Control.
|
No.
|
Item
|
Description
|
|
1
|
Image sensor
|
CMOS
|
|
2
|
Pixels
|
0.3 mega pixels
|
|
3
|
Image Resolution
|
640*480 320X240 160X120
|
|
4
|
Image Compression
|
JPEG
|
|
5
|
Focal Length
|
2.5mm 3.6mm 6mm optional
|
|
6
|
Angle of View
|
120° 90° 60° optional
|
|
7
|
Minimum lumen
|
1 Lux
|
|
8
|
Night Vision lumen
|
5 Lux
|
|
9
|
Night Vision Image
|
Black-White Image
|
|
10
|
Night Vision Distance
|
3-10M
|
|
11
|
Serial Interface
|
RS232 TTL RS485
|
|
12
|
Baud Rate
|
9600-115200bps
|
|
13(1)
|
Connector
|
Customize for customer(any connector is available)
|
|
(2)
|
PIN Description
|
PIN 1: DC 5V
PIN 2: TXD
PIN 3: RXD
PIN 4: GND
|
|
14
|
Length of Cable
|
Customize for customer
|
|
15
|
White Balance
|
Automatic
|
|
16
|
Exposure
|
Automatic
|
|
17
|
Auto Gain Control
|
Automatic
|
|
18
|
Weight
|
0.084KG
|
|
19
|
Working Current
|
80-120mA
|
|
20
|
Power Supply
|
5V
|
|
21
|
Working Temperature
|
-15°C~70°C
|
|
22
|
Datasheet/Protocol
|
LCF Protocol
|
|
23
|
PC Test Software
|
Support
|
